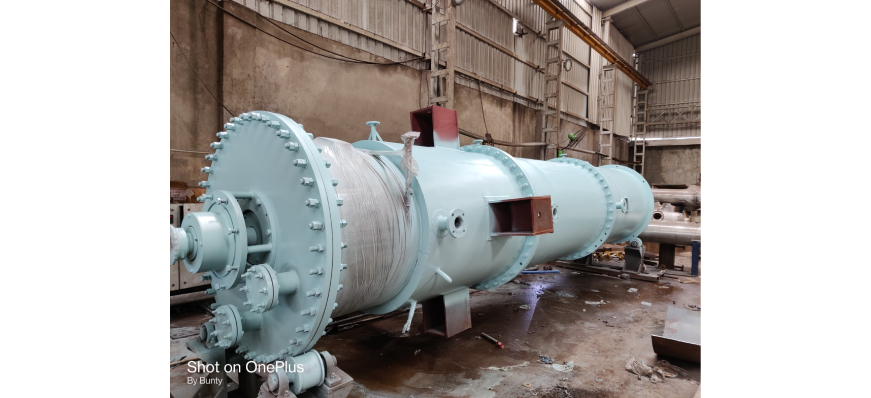

Agitated Thin Film Evaporator

Agitated Thin Film Evaporators are successfully used for the purification of organic compounds that are heat sensitive, viscous and have high boiling points.

ATFE Systems Experience

The key to the successful use of the ATFE is the proper selection and installation of ancillary equipment and instrumentation required to allow the ATFE to operate at its full capability.

ATFE, Greenchem Solution has been designing and supplying comprehensive WFE Systems to solve different processing problems for domestic and international clientele. Systems can vary in scope from simple to complex, multistage ATFE Systems that include the following:

Feed degasses

Multiple ATFEs

Level tanks and pumps

Tempered water systems

Multi-stage vacuum systems

Thermal fluid systems

Utility and process piping

Instrumentation and controls

Modular assembly on support steel (12 ft. x 12 ft. x 40 ft. high)

Operating/maintenance

ATFE Systems are our business. Our experienced project engineers will match your process objectives with a well-defined system that will satisfy all of your process and other special requirements.

Typical Applications For Atfe / Column Systems

Typical operating pressures in the range of 10-30 torr and in special cases, as low as 100 microns.

Distillation Step Previously Done In Batch Reactor

Eliminates heat history and minimizes thermal degradation

Thin film improves stripping of VOCs

Higher operating vacuums

Efficiently processes viscous solutions

Product Quality Improvement

Eliminates color bodies

Increases purity; minimizes impurities

Continuous operation

Low residence time eliminates thermal degradation

Enhanced Product Recovery

Recovers additional bottoms product from overhead

Eliminates loss due to thermal degradation

Recovers additional distillate product from bottoms
